Stainless steel corrosion resistance depends primarily on its chromium, molybdenum and nitrogen content, as well as the exposure environment. In the presence of chlorides, 316 stainless steel or duplex 2205 resists pitting better than 304 because a higher PREN delays localized attack.
Selecting a metal that will last for years in an aggressive environment begins with a sound understanding of stainless steel corrosion resistance. A poor trade-off leads to leaks, production shutdowns and premature replacements.
Between chlorides in a food-processing plant, steam in process piping and acids in a chemical shop, no single grade works everywhere. This guide explains the mechanisms involved and offers a clear method for matching each industrial environment to the right alloy family.
How stainless steel actually resists corrosion
Every stainless steel owes its longevity to a passive layer: an extremely thin chromium oxide film that forms spontaneously on contact with oxygen when enough chromium is present in the alloy. When this layer remains intact, the metal is protected. When an environment breaks through it locally, corrosion begins.
This self-repairing behaviour explains why the same alloy can last for decades in one application and deteriorate within months in another. For more on the fundamentals, the technical documentation on stainless steel corrosion mechanisms is a solid reference.
Chromium, molybdenum, nitrogen and PREN
Three elements determine performance in chlorides. Chromium builds the passive layer, molybdenum stabilizes it in acidic and chloride environments, and nitrogen raises the attack threshold. They are combined in the pitting resistance equivalent number, calculated as PREN = %Cr + 3.3 × %Mo + 16 × %N.
The higher the PREN, the better the grade resists pitting. As a published reference point, 316 stainless steel is around 25, while duplex 2205 reaches approximately 35 to 40. The molybdenum in 316 stainless steel is precisely what makes the difference in chloride environments.
However, PREN is used to rank grades within the same family, not to guarantee exact performance in a given environment. Temperature, acidity and part geometry matter just as much.
The main corrosion mechanisms to understand
Even corrosion-resistant stainless steel can fail if the attack mechanism has not been considered. Four types are seen most often in industry:
- Pitting corrosion
- Crevice corrosion
- Stress corrosion cracking
- Galvanic corrosion
Pitting corrosion

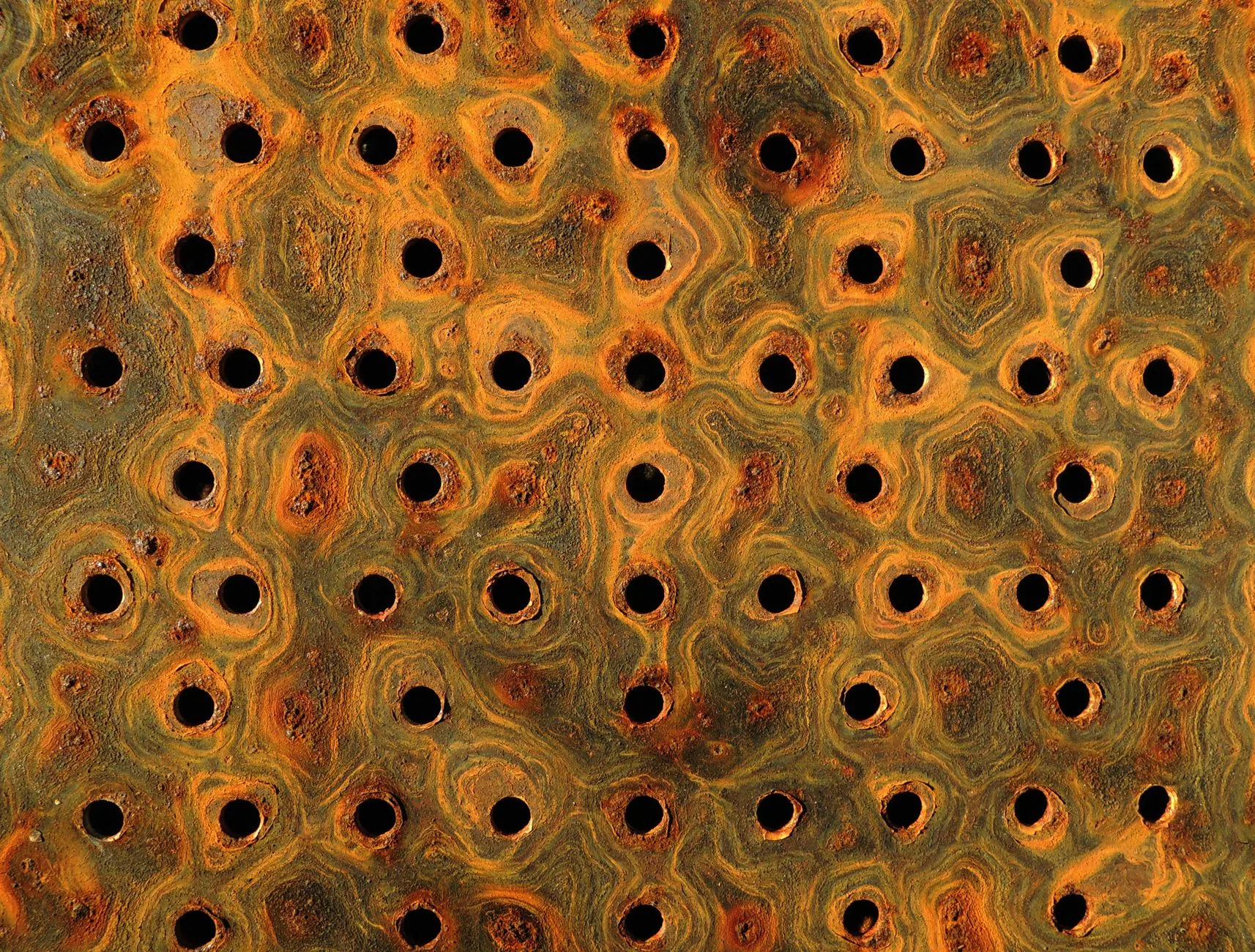

Pitting corrosion creates small, deep holes where chlorides locally break through the passive layer, often on an exposed surface. It progresses quickly and can perforate a wall without leaving visible deterioration around it. This is the primary risk wherever salt, seawater or brine is present.
Crevice corrosion
Crevice corrosion in stainless steel begins in a confined space: a gasket, overlap, thread or deposit where oxygen is lacking. This stagnant environment lowers the attack threshold, so crevice corrosion occurs at lower temperatures than pitting. Assembly design therefore matters as much as alloy selection.
Stress corrosion cracking and galvanic corrosion
Stress corrosion cracking combines tensile stress, chlorides and heat. It can split conventional austenitic stainless steel without warning in hot piping, while duplex grades resist it much better. Galvanic corrosion appears when two different metals touch in the presence of moisture, causing the less noble metal to corrode preferentially.
Stainless steel corrosion resistance by environment
The right approach is to start with the actual environment and work back to the grade. The following table summarizes the most common pairings in Quebec industrial fabrication.
| Industrial environment | Main risk | Preferred grade | Note |
|---|---|---|---|
| Drinking water, clean steam | Low | 304 / 304L | Economical and sufficient in low-contaminant environments |
| Food processing, chlorinated cleaning | Pitting | 316 / 316L | Molybdenum is needed against disinfectant residue |
| Coastal, brine, offshore | Pitting and stress corrosion cracking | Duplex 2205 | High PREN and good mechanical strength |
| Oxidizing acids (nitric) | General corrosion | 304L | The environment promotes passivation |
| Reducing acids (sulphuric) | Severe general corrosion | Duplex or Mo-rich alloys | Validate by testing for the actual concentration |
| Hot, contaminated wastewater | Crevice corrosion, pitting | Duplex 2205 | Avoid confined spaces and deposits |
For food processing, an overview of the issues specific to stainless steel fabrication helps define hygiene and cleaning requirements.
Choosing between two grades for equipment exposed to chlorides? Having a certified metal fabrication team validate your material selection avoids costly replacements and extends the service life of your installations.
304, 316 or duplex
The choice often comes down to three options. 304 suits dry or mildly aggressive environments. 316 adds molybdenum for moderate chlorides. Duplex targets severe conditions. The difference between 304L and 316L, as well as the applications of duplex 2205 and super duplex grades, should be compared before issuing a request for proposals.
Design and fabrication best practices
The best grade is of little use if fabrication creates the conditions for attack. A few practices can significantly extend part life:
- Avoid crevices: gaskets, overlaps and stagnant deposits concentrate chlorides.
- Pickle and passivate after welding to restore the protective layer.
- Match the filler metal to the base metal to preserve weld performance.
- Clean regularly to remove salts and residue before they accumulate.
- Isolate dissimilar metal pairs to prevent galvanic corrosion.
These principles align with the criteria for selecting a fabricator capable of guaranteeing pickling, passivation and material traceability.
Conclusion
Stainless steel corrosion resistance is never absolute: it is always defined in relation to a specific environment, temperature and attack mechanism. By starting with the chlorides, acids or steam that are actually present, then comparing PREN within the same family, the right grade can be matched to the right application.
Before finalizing a drawing or launching production, have certified metal fabrication specialists confirm the material-environment pairing. This is the best way to obtain durable, compliant equipment.
FAQ
What determines stainless steel corrosion resistance?
Stainless steel corrosion resistance relies on its passive layer, a chromium oxide film that reforms on contact with oxygen. Molybdenum and nitrogen reinforce this barrier against chlorides. The environment matters just as much: temperature, acidity, salt concentration and the presence of crevices determine whether the selected grade will last without premature pitting or cracking, even on heavily used equipment.
What is the difference between pitting and crevice corrosion?
Pitting corrosion forms small, deep holes where chlorides locally break through the passive layer, often on an exposed surface. Crevice corrosion in stainless steel begins in a confined space such as a gasket, thread or beneath a deposit where oxygen is lacking. This stagnant environment lowers the attack threshold, so crevice corrosion occurs at lower temperatures than pitting.
Is 316 always better than 304 for corrosion resistance?
316 contains molybdenum, which significantly improves its resistance to chlorides and acids compared with 304. In a dry room or low-contaminant environment, however, 304 remains economical and sufficient. The right approach is to assess the actual environment because choosing the wrong corrosion-resistant stainless steel costs more in replacements than it saves initially over the equipment’s service life.
When should duplex stainless steel be selected instead of 316?
Duplex grades such as 2205 combine high mechanical strength with excellent corrosion resistance thanks to a PREN that is significantly higher than 316. They are well suited to brackish water, offshore applications, certain chemical processes, and hot water treatment with high chloride levels. To select a stainless steel, compare PREN within the same family and validate the service temperature.
